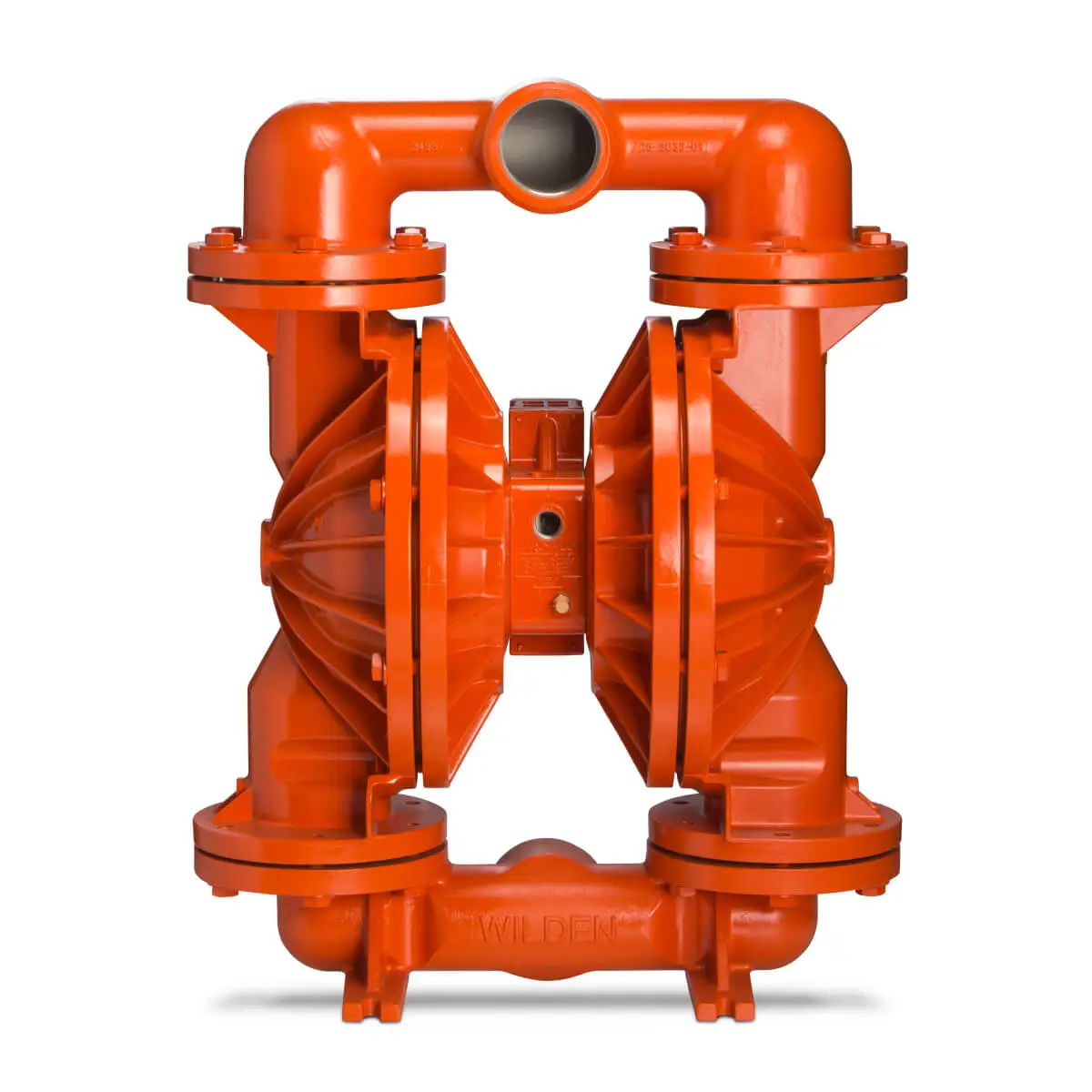

Wilden AODD Pumps
Salient Features : :
Self-priming
Portable
High vacuum
Run-dry capable
No heat generation
Higher Flow Rates
Lube-Free Operation
Reduced Air Consumption
Superior Product Containment
Easy installation
Corrosion resistant
Longest Mean Time
Between Failure (MTBF)

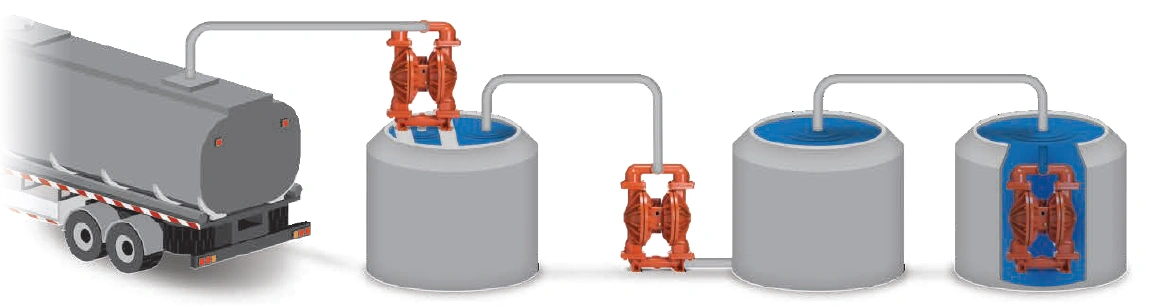

Installation diagram Wilden :
Specifications: :
Technical Data:
Material Availability : Aluminum, Ductile Iron, Stainless Steel, Alloy C, Polypropylene, PVDF
Size Availability : 6 mm (1/4") to 76 mm(3")
Elastomer Temperatures : -51° C to 177° C
Elastomer Options : Buna - N, Neoprene, EPDM, Viton, WiI - Flex, Saniflex Polyurethane & PTFE
Performance Data:
Max. Flow : 1,021 Ipm (270 gpm)
SMax. Suction Lift : 9.8 m (32.0') wet, 7.6 m (25.0') dry
Max. Solids Size : 35mm (1-3/8")
Applications: :
Mining
Oil & gas
Paints & Inks
Plating & Finishing
Pulp & Paper
Semiconductor
Waste Treatment
Solvents
Acids
Caustics
High Viscosity
High Pressure
Large Solids
Abrasive Media Hazardous and Flammable Liquids
Clean Room Fluids Flammable Liquids
Certifications : :

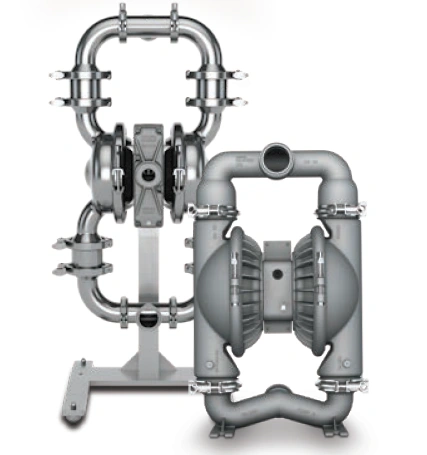

Hygienic and Sanitary Series Specialty Pumps :
Description | Sanitary pump with flow-through design for efficiently pumping a wide range of viscosities, solids and shear-sensitive products. HIS pumps feature quick disconnect clamps for clean-in-place (CIP) and clean-out-of-place (COP) capabilities |
Applications | Food and beverage, pharmaceuticals/ bio-pharm |
Benefits |
|
Sizes Available | Saniflo HS: 38 mm (1-1/2"), 76 mm (3") Saniflo FDA: 13 mm (1/2"), 76 mm (3") |
Max Flow Rate | Saniflo HS: 844 Ipm (223 gpm) Saniflo FDA: 927 Ipm (245 gpm) |
Certifications | *Applies only to Saniflo HS **USP Gass VI certification available only on Saniflo HS pumps with PTSE elastomer options |
