SLURRY VALVE |
||||
|
NAME |

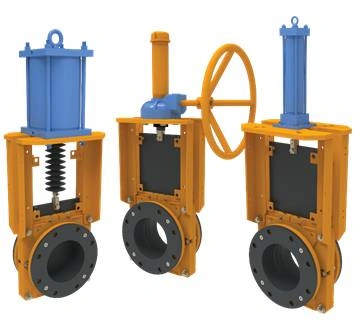

TechnequipTM Knife Gate Slurry Valve ( TG) |
TechnequipTM Wafer Style Knife Gate Slurry Valve ( TGW) |
TechnequipTM High Pressure Knife Gate Slurry Valve ( TGH ) |
TechnequipTM Extra High Pressure Knife Gate Slurry Valve ( TGHP) |
|
Size |
2" - 48" (50-1200 mm) |
2" - 24" |
2"-36" ( 50mm- 900mm) |
2"-36" ( 50mm- 900mm) |
|
Valve Type |
Slurry Knife Gate |
Slurry Knife Gate |
Slurry Knife Gate |
Slurry Knife Gate |
|
Body |
Ful Flanged |
Narrow Body |
Full flanged |
Full flanged |
|
Temperature Range |
-51c to 149c |
-51c to 149c |
-51c to 149c |
-51c to 149c |
|
Pressure Rating |
up to 150psi |
up to 150psi |
up to 300 psi |
up to 740 psi |
|
Body Material |
Cast ductile iron, 2 coat epoxy painted |
Cast ductile iron, 2 coat epoxy painted |
Cast ductile iron, 2 coat epoxy painted |
Fabricated Steel / 2 coat epoxy painted |
|
Gate Material |
17-4PH SS, 316L SS, 2205 duplex SS, 2507 duplex SS, C276 Hastelloy |
17-4PH SS, 316L SS, 2205 duplex SS, 2507 duplex SS, C276 Hastelloy |
17-4PH SS, 316L SS, 2205 duplex SS, 2507 duplex SS, C276 Hastelloy |
17-4PH SS, 316L SS, 2205 duplex SS, 2507 duplex SS, C276 Hastelloy |
|
Seat Material |
Gum rubber, high temp EPDM, Neoprene |
Gum rubber, high temp EPDM, Neoprene |
Gum rubber, high temp EPDM, Neoprene, Nitrile, Chlorobutyl |
|
|
Duty |
Heavy duty abrasive application |
Medium to Heavy duty abrasive application |
Heavy duty abrasive application for high pressure |
Heavy duty abrasive application for extra high pressure |
|
Actuation Options |
Pneumatic, Hydraulic, Bevel gear, Electric, Hand wheel |
Pneumatic, Hydraulic, Bevel gear, Electric, Hand wheel |
Pneumatic, Hydraulic, Bevel gear, Electric, Hand wheel |
Pneumatic, Hydraulic, Bevel gear, Electric, Hand wheel |
