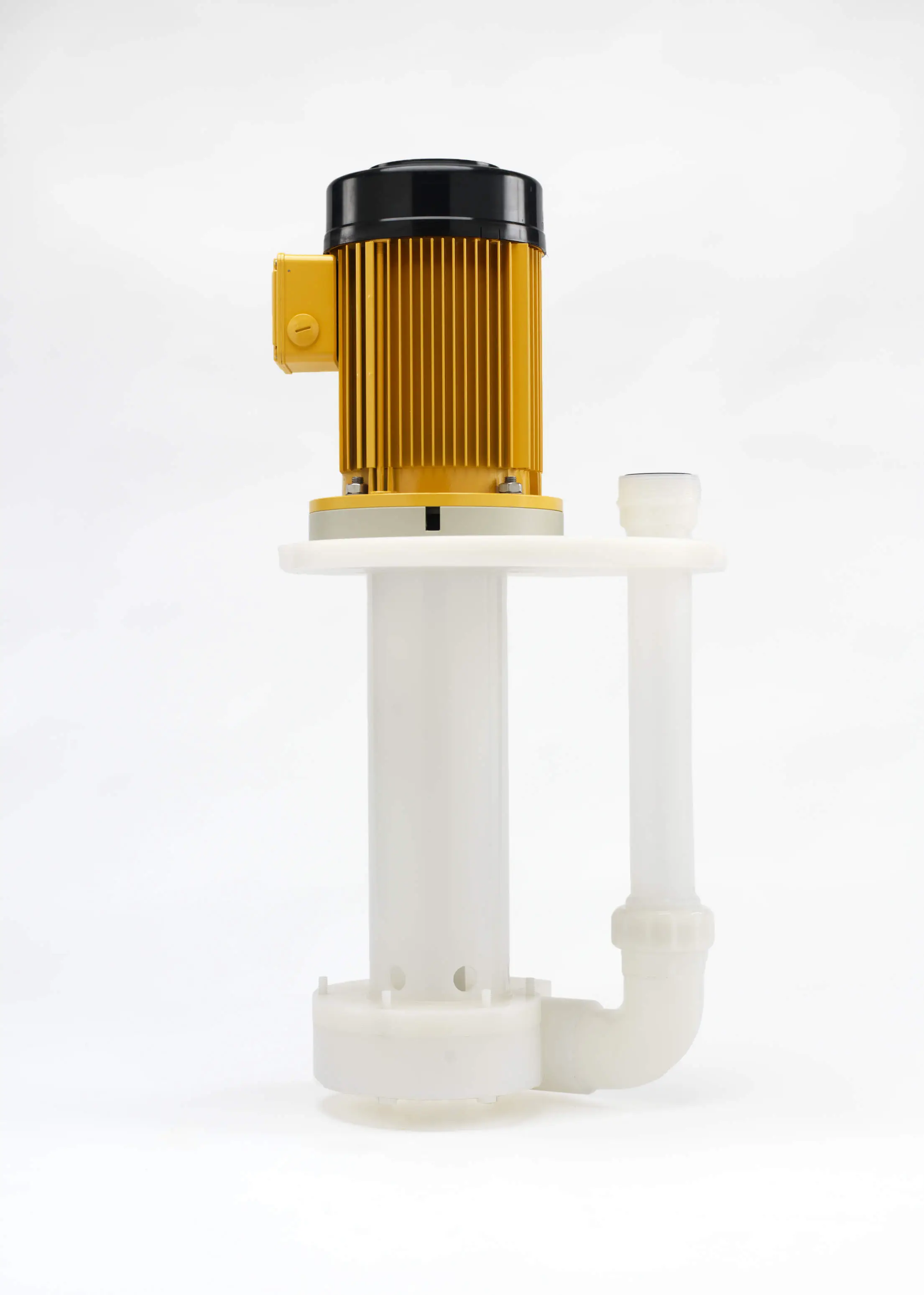

Polypropylene Immersible Pumps are fully immersed in the liquid and meant for continuous operation.
The extended shaft, encased in a Polypropylene tube, is connected to the Impeller at the other end.
All the wet parts are made out of Polypropylene and eliminate corrosion.
The overflow is allowed to pass through the annular space between the shaft and the column pipe.
The auxiliary impeller provided at the top ensures the liquid does not travel towards the motor side.
The excess liquid is allowed to flow back to the tank through the drain holes provided in the column Pipe.
Max capacity : 26 m3/hr
Max head : 25 M
No seal/ No Magnet / No packing.
No coupling / No alignment.
Suitable for Dry running.
Suitable for handling particles.
Temperature : Up to 90°C.
In tank & out tank installation.
Plating industries
Scrubber systems
Water treatment plants
Process applications
Effluent treatment plants
Transfer of acid
